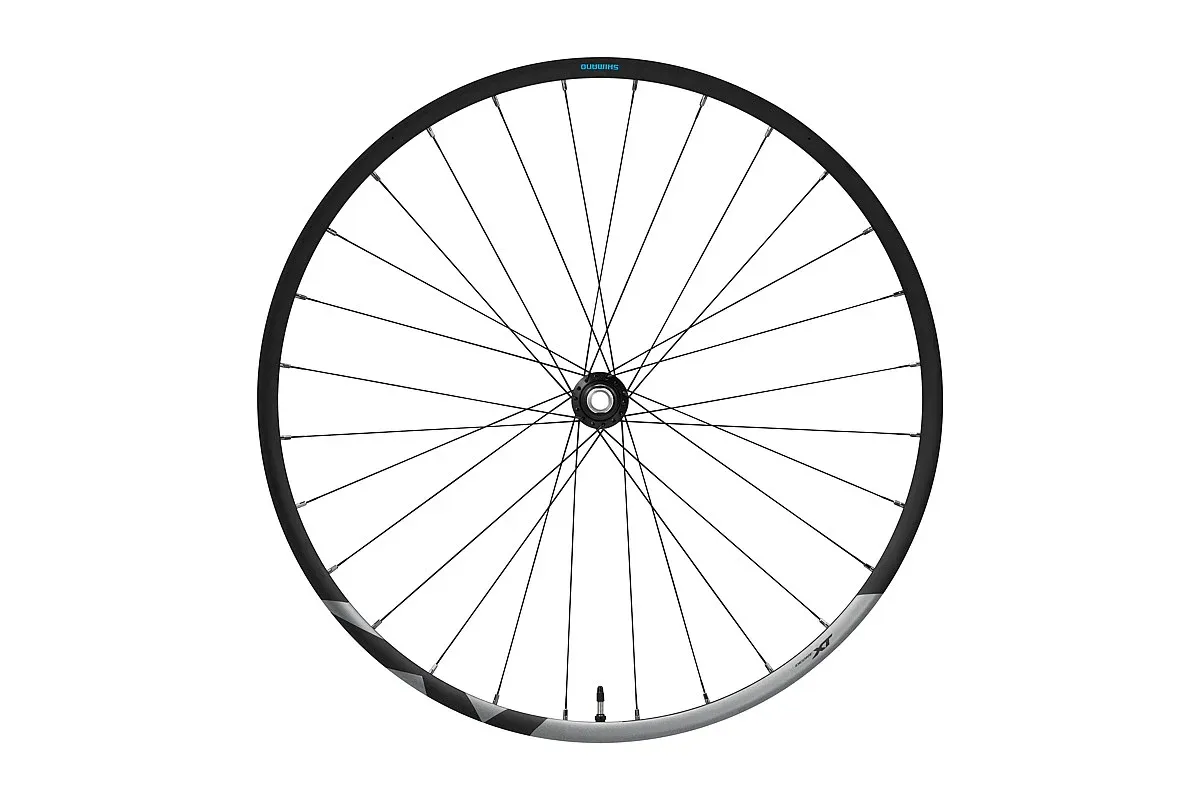

Wheelset 29 po Shimano XT WH-M8120-B-29 comp. 11/12sp 15x110mm / 12x148mm - Centerlock
Product Details
UPC: 192790449487
Brand: Shimano
SHIMANO DEORE XT wheels bring robust performance to any trail. The aluminum tubeless rims are offset for balanced spoke tension. Double butted, straight-pull spokes are laced to CENTER LOCK hubs with reliable, smooth-rolling labyrinth seal hubs.
FEATURES
- Reliable high-speed cornering
- Front 15 mm E-THRU axle +15% torsional stiffness +25% transverse shear stiffness (vs 9 mm quick release)
- Simple setup and reliable trail performance
- 28 J-bend spokes (2.0-1.8-2.0 double butted)
- External rim width: 34.7 mm
| MODEL NO | WH-M8120-TL-F15-B-29 |
|---|---|
| SERIES | DEORE XT M8100 Series |
| Color | Series color |
| Average weight | 941 |
| Model name | WH-M8120-TL |
|---|---|
| Specification | F15-B-29 |
| Color|1 Hub shell | Series color |
| Front/Rear | Front |
| Brake type | CENTER LOCK disc brake |
| O.L.D. (mm) | 110 |
| Wheel size | 622 x 30C (29 inch) |
| Tire|Type | Tubeless |
| Tire|Recommended size | 29 x 2.25 - 2.60 |
| Rim|Height (mm) | 19.8 |
| Rim|Internal width (mm) | 30 |
| Rim|External width (mm) | 34.7 |
| Rim|Rim joint | Welded |
| Rim|OFFSET RIM | ✔ |
| Rim|Requires rim tape | X (30-584) |
| Spokes|Number | 28 |
| Spokes|Butted | 2.0 - 1.8 |
| Spokes|J-bend | ✔ |
| Spokes|Diameter (mm) | 2.0-1.8 |
| Axle fixing method | 15 mm E-THRU |
| Thru axle (length x inner diameter ; mm)|110 x 15 | ✔ |
| Seal|Hub | Labyrinth+Contact |
| Internal grease sleeve | ✔ |
| Reflector|JIS/CPSC | CATEYE RR-550-WUW SW |
| Reflector|AS | CATEYE RR-550-WUA SW |
| Reflector|DIN | CATEYE RR-317-WUA SW |
| MODEL NO | WH-M8120-TL-R12-B-29 |
|---|---|
| SERIES | DEORE XT M8100 Series |
| Color | Series color |
| Average weight | 1061 |
| Model name | WH-M8120-TL |
|---|---|
| Specification | R12-B-29 |
| Color|1 Hub shell | Series color |
| Front/Rear | Rear |
| Brake type | CENTER LOCK disc brake |
| Rear speeds | 12 |
| O.L.D. (mm) | 148 |
| Wheel size | 622 x 30C (29 inch) |
| Tire|Type | Tubeless |
| Tire|Recommended size | 29 x 2.25 - 2.60 |
| Rim|Height (mm) | 19.8 |
| Rim|Internal width (mm) | 30 |
| Rim|External width (mm) | 34.7 |
| Rim|Rim joint | Welded |
| Rim|OFFSET RIM | ✔ |
| Rim|Requires rim tape | X (30-622) |
| Spokes|Number | 28 |
| Spokes|Butted | 2.0 - 1.8 |
| Spokes|J-bend | ✔ |
| Spokes|Diameter (mm) | 2.0-1.8 |
| Axle fixing method | 12 mm E-THRU |
| Thru axle (length x inner diameter ; mm)|148 x 12 | ✔ |
| Spline type|MICRO SPLINE | ✔ |
| Engagement type | Direct engagement |
| Quick engagement | X (max 7.0 deg.) |
| Seal|Hub | Labyrinth+Contact |
| Seal|FREEHUB body | Contact |
| Reflector|JIS/CPSC | CATEYE RR-550-WUW SW |
| Reflector|AS | CATEYE RR-550-WUA SW |
| Reflector|DIN | CATEYE RR-317-WUA SW |
